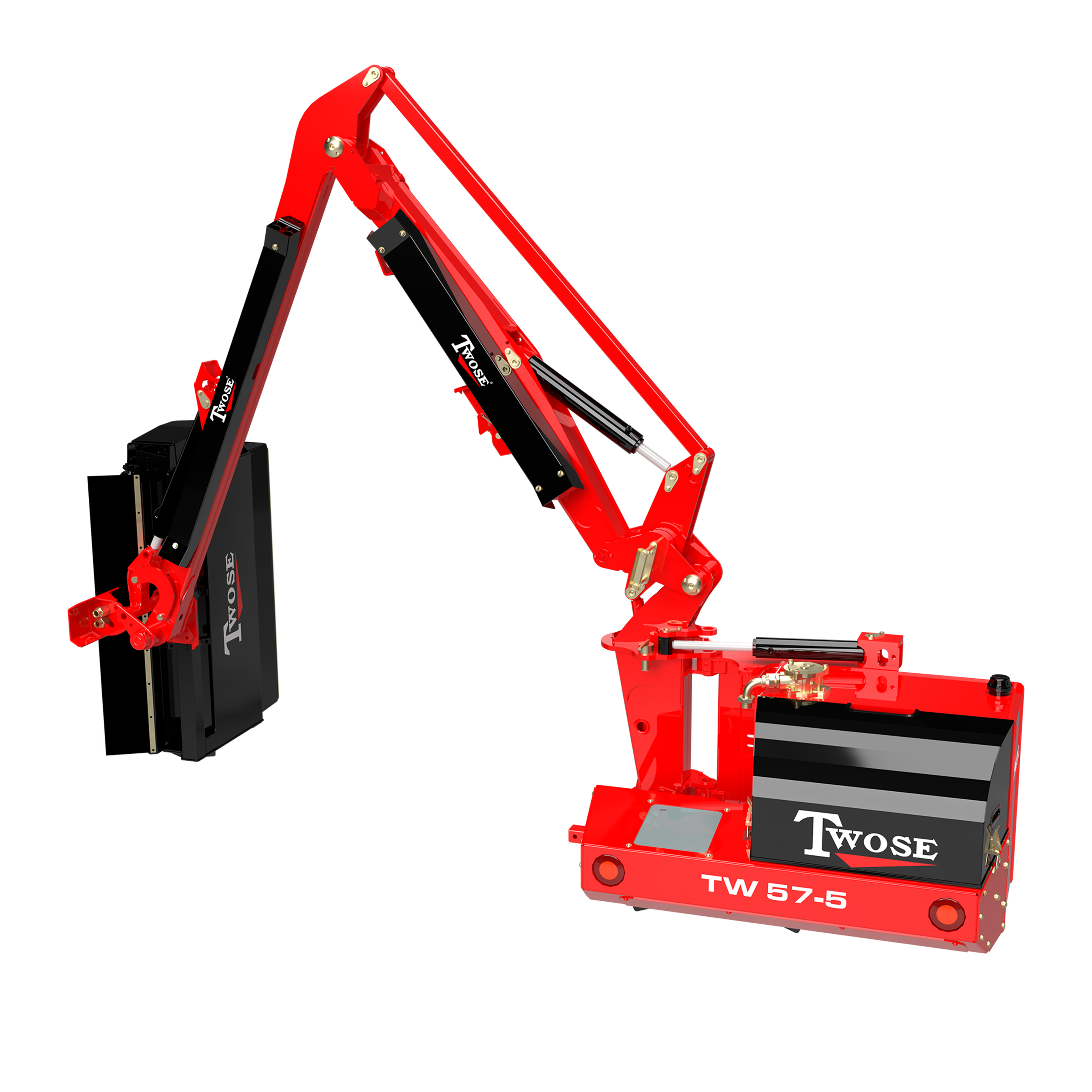

The flagship 5-Series model by Twose offers four different reach options from 5.7 to 7.7m, 65hp high-performance hydraulics, and a choice of advanced control systems.
Three different arm sets are available including Standard Telescopic (for added extra reach on demand) and Variable Forward Reach (for enhancing comfort, visibility and reducing fatigue).
| Specification | TW57-5 | TW60-5 | TW67T-5 | TW77T-5 | ||||
|---|---|---|---|---|---|---|---|---|
| HP | 65hp | 65hp | 65hp | 65hp | ||||
| Reach | 5.7m | 6.0m | 6.7m | 7.7m | ||||
| Slew | Yes | Yes | Yes | Yes | ||||
| Angle Float | Yes | Yes | Yes | Yes | ||||
| Lift Float | Optional | Optional | Optional | Optional | ||||
| Mounting | 3pt | 3pt | 3pt | 3pt or Axle | ||||
| Oil Cooler | Yes | Yes | Yes | Yes | ||||
| Road Lighting | Optional | Optional | Optional | Optional | ||||
| Weight | 1470kg | 1482kg | 1611kg | TBC | ||||
| Oil Tank | 200ltr | 200ltr | 200ltr | 200ltr | ||||
| Safety Breakaway | Hydraulic | Hydraulic | Hydraulic | Hydraulic | ||||
| Arm Sets | ||||||||
| Parallel Arm Geometry | Standard | Standard | Standard | Standard | ||||
| CFR | - | Optional | - | - | ||||
| Controls | ||||||||
| Proportional Cable | Optional | Optional | - | - | ||||
| Proportional Low Pressure Hydraulic | Optional | Optional | Optional | - | ||||
| Proportional Electric (EPP) | Optional | Optional | Optional | Optional | ||||
| Flailheads | ||||||||
| 1.2m Sliding Mount, Belt Drive Flailhead | Standard | Standard | Standard | Standard | ||||
| 1.5m Sliding Mount, Belt Drive Flailhead | Optional | Optional | Optional | Optional | ||||
| Requirements | ||||||||
| Minimum tractor weight | 3000kg | 3000kg | 3000kg | 3750kg | ||||
| Minimum tractor horsepower | 70hp | 70hp | 100hp | 120hp | ||||
A precise, productive mid-range machine, the 5-Series has been created especially for farmers and small-scale contractors.
