VERSATILE OFFSET MOWING.

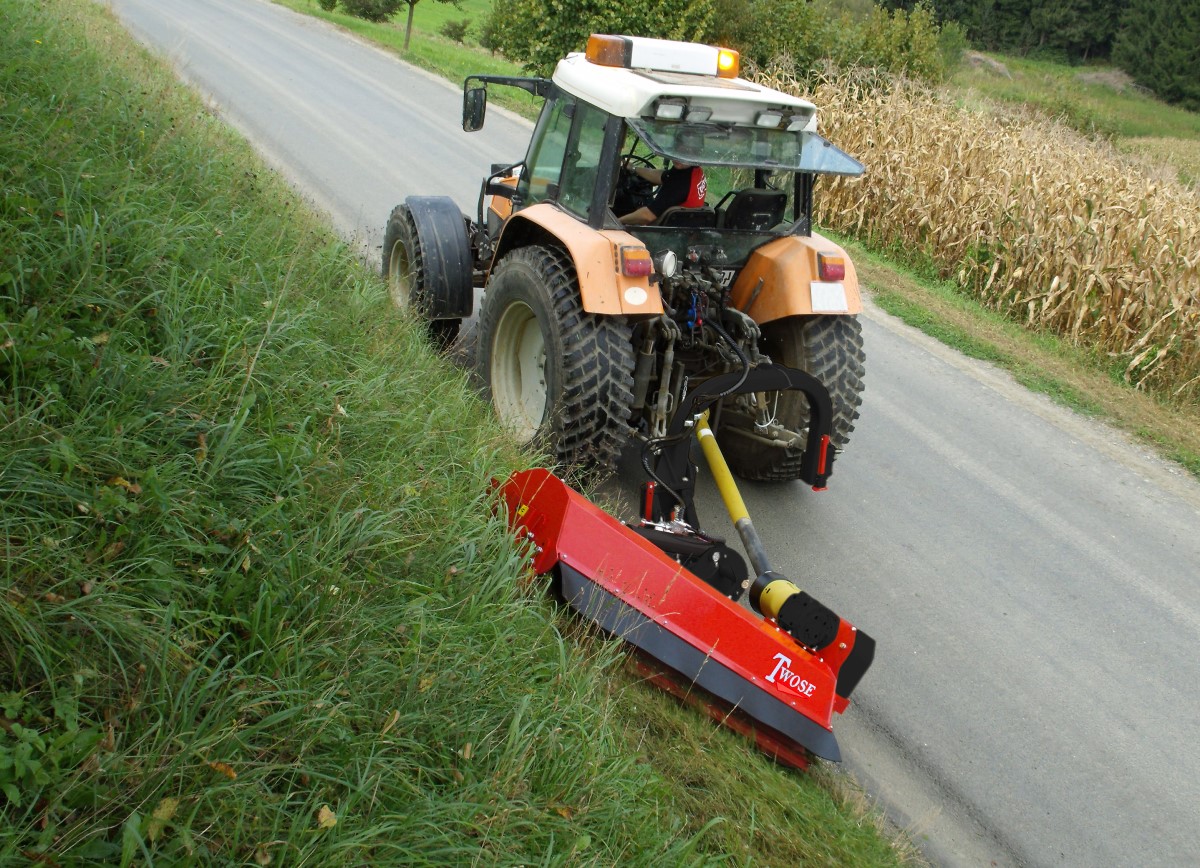

An innovative Z-Link machine which is ideal for cost-effective verge and embankment mowing, the elite offset is productive and versatile and is even capable of trimming the sides of hedges.

Available in three different cutting widths from 1.62m to 2.27m, the tornado elite offset offers 155° of lateral movement and a floating linkage system that allows it to follow the contours of the ground.

ModelTornado Elite Offset 160Tornado Elite offset 190Tornado Elite Offset 225
Specification
Cutting width 1.62m (5'4")1.92m (6'4")2.27m (7'5")
Cutting height 30mm - 80mm30mm - 80mm30mm - 80mm
Cutting capacity 60mm60mm60mm
Tractor requirement & attachment
HP requirement 50hp70hp80hp
Method of attachment 3-point linkage3-point linkage3-point linkage
Dimensions
Weight 659kg746kg824kg
Overall width 1.97m2.43m2.78m
Equipment details
PTO speed 540rpm540rpm540rpm
Protection Slip clutchSlip clutchSlip clutch
Number of flails 202428
Hydraulic adjustment range90 degrees up, 65 degrees down 90 degrees up, 65 degrees down 90 degrees up, 65 degrees down
Key features
  • 1.62m, 1.92m and 2.27m cutting widths
  • Three-point linkage mounting
  • 155° head movement (+90° and -65°)
  • 50mm cutting capacity
  • Rigid linkage
  • Belt shield guard
  • Durable design
  • Whale-tail flails
  • PTO over-run protection
  • Extension up to 3.25m
  • Optional hydraulic floatation system
  • 540rpm PTO speed
Specifications
  • 1.62m - 2.27m cutting widths
  • 60mm cutting capacity
  • 30mm - 80mm cutting height
Tractor Requirements
  • 50hp - 80hp requirement
  • Three-point linkage
Dimensions
  • 659kg - 824kg weight
  • 1.97m - 2.78m overall width
Equipment details
  • 540rpm PTO speed
  • Slip clutch protection
  • 20 - 28 flails
  • 155° hydraulic head movement (+90° and -65°)
