PRODUCTIVE AND FEATURE-PACKED

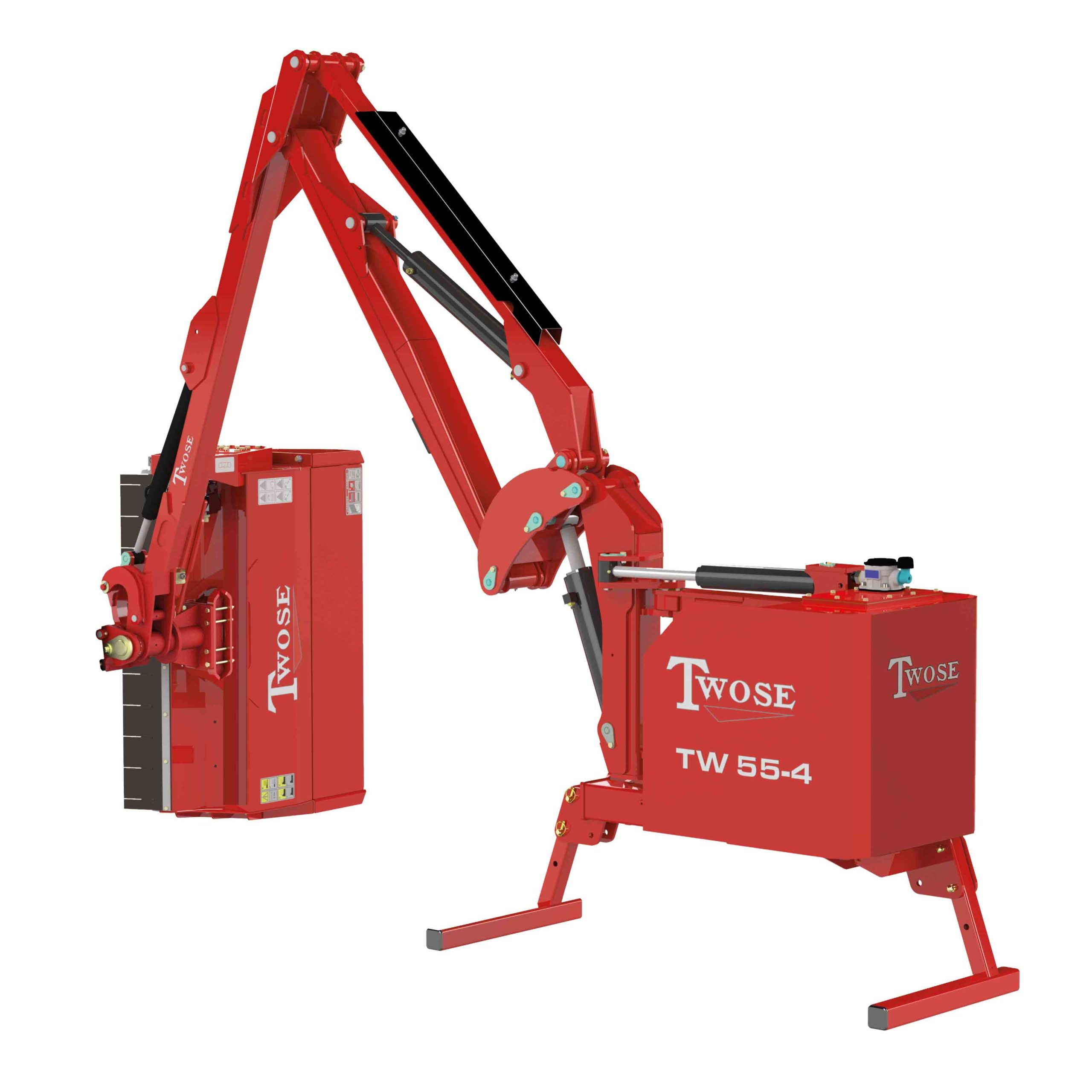

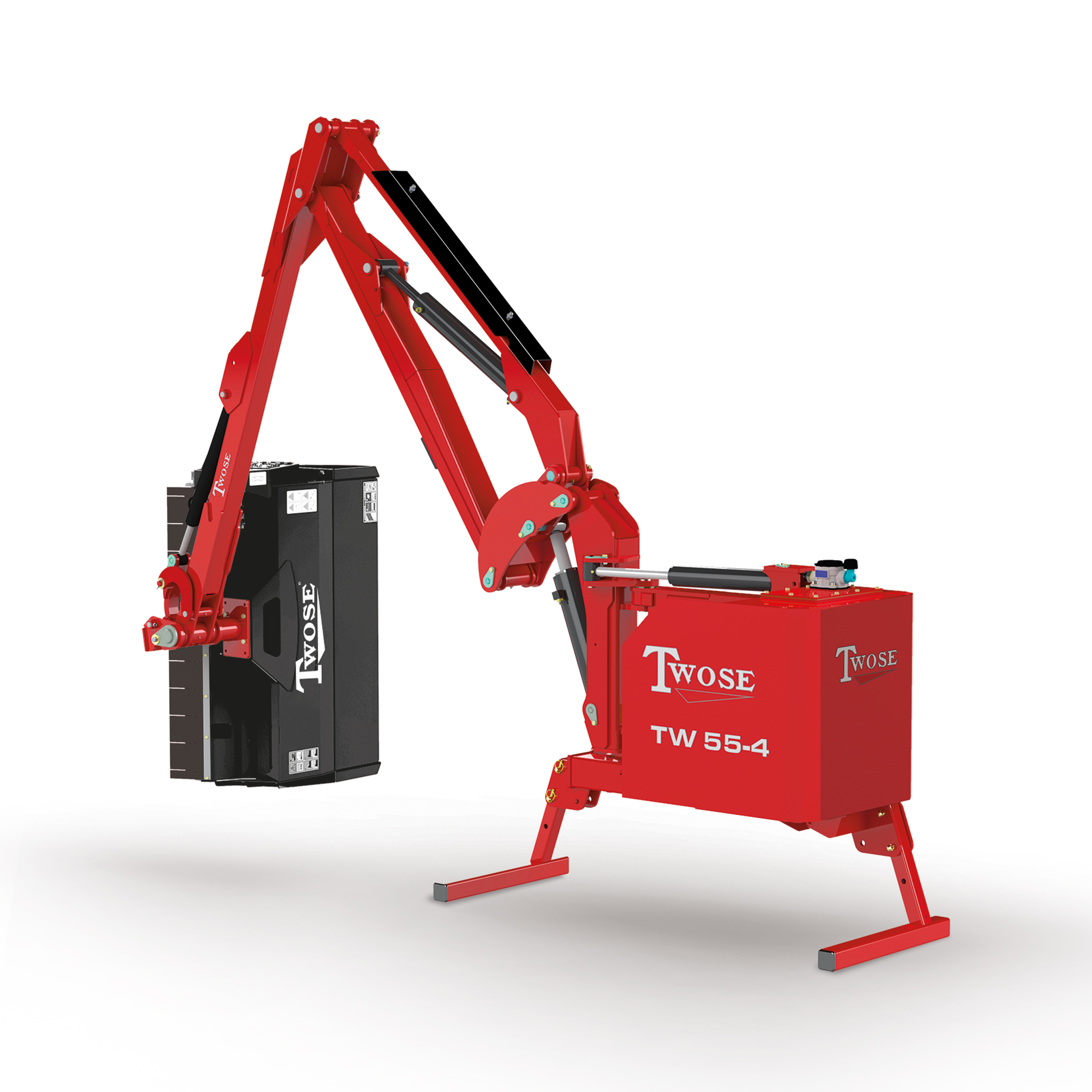

Twose’s most advanced mid-range machine, the TW55-4, features the proven low pressure hydraulic proportional joystick; competitive 5.5m reach; 50hp hydraulics; and a 90° hydraulic slew with breakaway protection.

Compatible with tractors of just 60hp and upwards, the machine is equipped with a double-skin heavy-duty 1.2m flail head and is available with more than 10 different cutting attachments, including Sawheads and Cutterbars.

SpecificationTW55-4
HP50hp
Reach5.5m
SlewYes
Angle FloatYes
Lift FloatOptional
Mounting3pt
Oil CoolerOptional
Road LightingOptional
Weight1340kg
Oil Tank140ltr
Safety BreakawayHydraulic
Arm Sets#colspan#
Parallel Arm GeometryStandard
Controls#colspan#
Proportional CableStandard
Proportional Low Pressure HydraulicOptional
Proportional Electric (EPP)Optional
Flailheads#colspan#
1.2m Sliding Mount, Direct Drive FlailheadStandard
Requirements#colspan#
Minimum tractor weight2250kg
Minimum tractor horsepower60hp
Key features
  • Sliding mount direct drive flailhead
  • 240° head rotation
  • Dual direction cutting
  • Hydraulic slew
  • Hydraulic breakaway protection
  • 140 litre oil tank capacity
  • Cast iron pumps and motor
  • Angle float
  • Road lighting (optional)
  • Lift float (optional)
Specification
  • 5.5m reach
  • 3-point linkage
  • 50hp hydraulics
Armsets
  • Standard straight arm
  • Parallel arm geometry
Controls
  • Proportional cable controls
  • Proportional low pressure hydraulic controls
  • Proportional electric controls (EPP)
Flailheads
  • 1.2m sliding mount direct-drive flailhead
Attachments
  • Sawheads
  • Cutterbars
Tractor requirements
  • 60hp, 2500kg
4-Series dimentions
